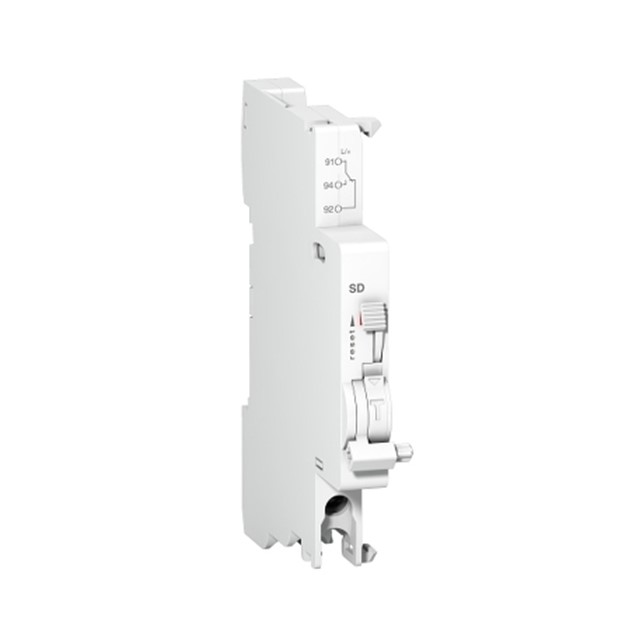

Acti 9 – Auxiliary contact alarm SD ac dc
Rp526.406
Deskripsi
| range of product | Acti9 |
|---|---|
| Product or component type | Fault contact |
| device short name | SD |
| Signal contacts composition | 1 C/O |
| [In] rated current | AC-12 3 A at 380…415 V, AC 50/60 Hz AC-12 6 A at 220…240 V, AC 50/60 Hz DC-12 1 A at 130 V, DC DC-12 1.5 A at 60 V, DC DC-12 2 A at 48 V, DC DC-12 6 A at 24 V, DC |
| 9 mm pitches | 1 |
| Mounting mode | Fixed |
|---|---|
| Mounting support | DIN rail |
| Comb busbar and distribution block compatibility | Top: YES |
| Height | 85.3 mm |
| Width | 9 mm |
| Depth | 73.5 mm |
| Product weight | 30 g |
| Colour | White |
| Connections – terminals | Screw clamp terminal (bottom) 2 cable(s) 1.5 mm² – flexible Screw clamp terminal (bottom) 1 cable(s) 0.5…2.5 mm² – rigid Screw clamp terminal (bottom) 2 cable(s) 1.5 mm² – flexible with ferrule |
| Wire stripping length | 9 mm |
| Tightening torque | 1 N.m |
| standards | EN/IEC 60947-5-1 |
|---|---|
| Product certifications | ASTA LCIE KEMA ASEFA |
| IP degree of protection | IP20 conforming to EN/IEC 60947-5-1 |
| Pollution degree | 3 conforming to EN/IEC 60947-5-1 |
| Tropicalisation | 2 conforming to EN/IEC 60947-5-1 |
| Ambient air temperature for operation | -25…50 °C |
| Ambient air temperature for storage | -40…85 °C |
